LYNCH BAR MANIFOLDS & ACCESSORIES

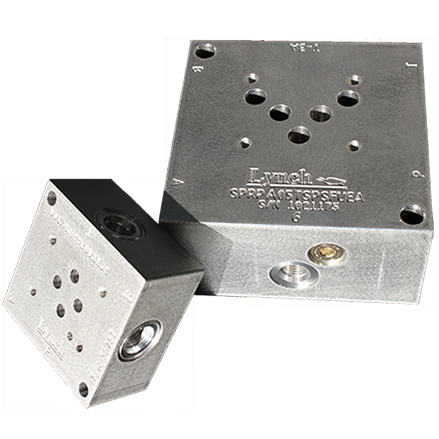

Block Subplates
STANDARD SPECIFICATIONS
Standard Materials:
Aluminum-6061T6 and Ductile-654512
Other Material Options:
Mild Steel or Stainless Steel
Maximum Pressure:
Alu 3,000 PSI, Duc 5,000 PSI
Special Finishes:
Black Oxide, Electroless Nickel Plating, Anodizing
Mounting:
Required UNC or Metric mounting bolt kits and plugs supplied standard.

APPLICATIONS

Single cylinder press station
Single Cylinder Presses - Subplates are needed when just one directional valve is required. They can include the relief valve of the system making it very compact and easy to setup.
Blue Hydraulic power unit
Power Units - Additional features can easily be installed by using a subplate and connecting it to an existing Hydraulic Power Unit.

SUBPLATES

Shop Now
Subplates are also known as mounting pads, sub bases, and base plates. Subplates give valves a mounting pad, and allow for many different port styles and locations to meet the design requirements of the system. Subplates are designed to provide a means to connect a single solenoid valve to field piping either on the power unit or near the actuator. Subplates with Relief from P to T are designed to provide a means to connect a single solenoid valve to field piping either on the power unit or near the actuator. This manifold provides an integral system relief cavity to minimize piping. Our line of subplates are designed as a complete family with consistent mounting for all bottom ported, side/bottom ported, side ported & tank top designs.

FEATURES AND BENEFITS

  • Port spacing has been maximized and aligned simplifying the installation of piping and minimizing space requirements.
  • There is no variation in design layout for each Model, regardless of Port Code.
  • All D05H and D05HE Subplates are designed with dual tank ports on the solenoid interface in order to maximize valve performance.
  • Pilot ports and/or gauge ports are never on the same face as the work ports; a configuration which grants the user more space and convenience when assembling the hydraulic system.
  • Clearance holes are located outside the solenoid valve interface limits wherever possible in order to facilitate valve assembly prior to mounting the subplate.
  • Internal galleries have been maximized in order to minimize pressure drops and fluid velocities.
  • Port spacing has been maximized and aligned simplifying the installation of piping and minimizing space requirements.
  • No variation in design layout for each Model regardless of Port Code.
  • Gauge Ports on Pressure Port are standard in order to facilitate the setting of the relief valve.
  • "05T" Code provides dual tank ports without the pilot ports for D05H(E) designs for higher performance applications.
  • "ST" Porting Style includes additional tank port on side in addition to bottom NPT tank port.
  • Subplates with Circuits such as "P" Port Check With and Without Reliefs, Reducer on "P" Port and Cross-Line reliefs on "A" and "B" Ports are available. Please contact Factory for Part Numbers.
  • Servo Subplates are available.
  • Subplates for Gasket Mount Reliefs, Pressure Reducers, Flow Controls, etc. are available.

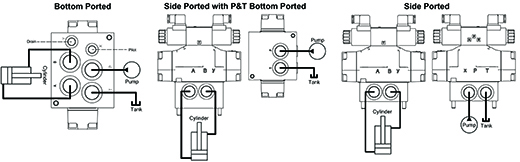

BLOCK DIAGRAM
Subplate block diagram

BUILD A SUBPLATE

Type:
Type
Unselected
----
Unselected
----
Subplate
SPXX
Subplate with P to T Relief
SPRP
Material:
Material
Unselected
-
Unselected
-
Aluminum
A
Ductile Iron
D
Valve Pattern:
Valve Pattern
Unselected
---
Unselected
---
D03 - ISO 4401-03-02 / NFPA T3.5.1
03G
D05 - ISO 4401-05-04 / NFPA T3.5.1
05G
D05 Alt B - (USA Standard) NFPA T3.5.1
05H
D05 Alt A - ISO 4401-05-05 (EURO) / NFPA T3.5.1
05E
D05 (Dual Tank) - ISO 4401-05-04 / NFPA T3.5.1
05T
D07 - ISO 4401-07-06 / NFPA T3.5.1
07G
D08 - ISO 4401-08-07 / NFPA T3.5.1
08G
Porting Style
Porting Style
Unselected
--
Unselected
--
Bottom Ported Only
BP
Side Ported with Bottom P & T Ports
SB
Side Ported Only
SP
Side Ported with NPTF "T" Port on Bottom only
ST
Port Code:
Port Code
Unselected
--
Type
P, T, A, and B
Code
Unselected
--
SAE
4
SB
NPTF
1/4"
NB
BSPP
1/4"
BB
BSPT
1/4"
TB
Metric
M10
MB
SAE
6
SC
NPTF
3/8"
NC
BSPP
3/8"
BC
BSPT
3/8"
TC
Metric
M14
MC
SAE
8
SD
NPTF
1/2"
ND
BSPP
1/2"
BD
BSPT
1/2"
TD
Metric
M18
MD
SAE
12
SF
NPTF
3/4"
NF
BSPP
3/4"
BF
BSPT
3/4"
TF
Metric
M27
MF
SAE
16
SH
NPTF
1"
NH
BSPP
1"
BH
BSPT
1"
TH
Metric
M33
MH
SAE
20
SI
NPTF
1 1/4"
NI
BSPP
1 1/4"
BI
BSPT
1 1/4"
TI
Metric
M42
MI
Mounting Threads & Kit
Mounting Threads & Kit
Unselected
-
Unselected
-
UNC Std for SAE & NPT
U
Metric Std for BSP & Metric
M
Relief Cavities and Pilot Port Options:
Pilot Port Options
Unselected
--
Unselected
--
None
AA
X & Y Ports
AE
Sun T-10A
CA
Common C10-2
DA
Common C10-2
DE
Sun T-3A
EE
Sun T-3A(No Pilot Port)
EA
Sun T-16A
GE
Common C16-2
HE
Sun T-16A (No Pilot Port)
GA
Common C16-2 (No Pilot Port)
HA
Welcome to the Part Number Generator
The part number you have selected is only available by special order. Please contact your Lynch representative for more details.
The part number you have selected is not a standard configuration. Please contact your Lynch representative for more details.
