LYNCH BAR MANIFOLDS & ACCESSORIES

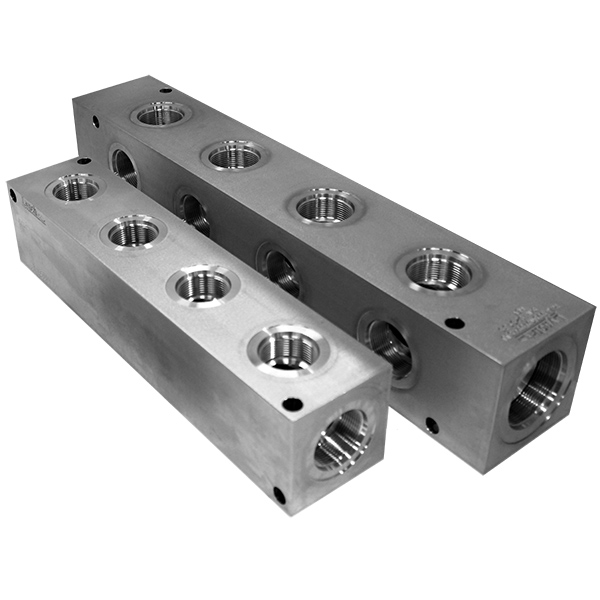

Header and Junction boxes
STANDARD SPECIFICATIONS
Standard Materials:
Aluminum-6061T6 and Ductile-654512
Other Material Options:
Mild Steel, Stainless Steel, or Nylon®
Maximum Pressure:
Alu 3,000 PSI, Duc 5,000 PSI
Special Finishes:
Black Oxide, Electroless Nickel Plating, Anodizing
Mounting:
UNC mounting bolt kits are supplied standard
APPLICATIONS
Surface Rigger
Surface Rig - Headers are used to neatly connect through ports in a hydraulic system to simplify installation and reduce losses and potential points of leakage.
Hydraulic arm
Industrial Applications - Junctions are used to condense several elbows or tees in one body to keep an installation looking very neat and tidy.

HEADERS & JUNCTIONS

Shop Now
Header & Junction blocks are used to provide distribution or connection points in a fluid power piping system. They only have ports and not valve or pattern machined features. Headers provide a common through port for multiple inlet or outlet ports at each station to be neatly connected together. Junctions offer termination points to join individual lines in order to change direction or combine/split flow with other lines at each station. In both cases they provide support to the piping system. We offer a full range from 1 station to 10 stations and all port orientations.
FEATURES AND BENEFITS
  • Top & Side mounting is standard.
  • Internal galleries are equal to or greater than the nominal port connection in order to minimize pressure drops and fluid velocities.
  • No variation in design layout for each Model regardless of Port Code.
  • Both Headers & Junctions are offered in odd and even number of stations up to 10.
  • Headers are offered in 0°, 90° and 180° configurations as standard. Special orders can be placed for the 270° configurations.
  • Junctions are offered in 90°, 180° and 270° configurations as standard.
  • Models with smaller ports than shown are available as non-standards.
  • Optional spacing between ports is available upon request.
  • Optional port sizes and types such as Metric, BSPP and SAE Flanges Code 61 or 62 are available on request.
  • Some models of Twin Headers and Junctions are available.
BLOCK DIAGRAM
Header and Junction block diagram

BUILD A HEADER OR JUNCTION
Type:
Type
Unselected
-
Unselected
-
Header
H
Junction
J
Material:
Material
Unselected
-
Unselected
-
Aluminum
A
Ductile Iron
D
Steel
F
Material Size:
Material Size
Unselected
---
Size
Code
Unselected
---
1.00" x 1.00"
100
1.50" x 1.50"
150
1.75" x 1.75"
175
2.00" x 2.00"
200
2.50" x 2.50"
250
3.00" x 3.00"
300
3.50" x 3.50"
350
4.00" x 4.00"
400
End Port Code:
End Port Code
Unselected
--
Type
Code
Unselected
--
None
XX
1/8" NPTF
NA
1/4 NPTF
NB
SAE 6
SC
3/8" NPTF
NC
SAE 8
SD
1/2" NPTF
ND
SAE 12
SF
3/4" NPTF
NF
SAE 16
SH
1" NPTF
NH
SAE 20
SI
1 1/4" NPTF
NI
SAE 24
SJ
1 1/2" NPTF
NJ
SAE 32
SK
2" NPTF
NK
Port Orientation:
Port Orientation
Unselected
---
Style
Code
Unselected
---
One Side Only
000
Top & One Side
090
Two Opposite Sides
180
Top & Two Opposite Sides
270
NO. of Stations:
NO. of Stations
Unselected
--
Unselected
--
1 Station
01
2 Stations
02
3 Stations
03
4 Stations
04
5 Stations
05
6 Stations
06
7 Stations
07
8 Stations
08
9 Stations
09
10 Stations
10
Side Port Code:
Side Port Code
Unselected
--
Type
Code
Unselected
--
1/16" NPTF
NR
1/8" NPTF
NA
SAE 4
SB
1/4 NPTF
NB
SAE 6
SC
3/8" NPTF
NC
SAE 8
SD
1/2" NPTF
ND
SAE 12
SF
3/4" NPTF
NF
SAE 16
SH
1" NPTF
NH
SAE 20
SI
1 1/4" NPTF
NI
SAE 24
SJ
1 1/2" NPTF
NJ
Mounting:
Mounting
Unselected
-
Unselected
-
Top & Side Mounting Holes
U
Welcome to the Part Number Generator
The part number you have selected is only available by special order. Please contact your Lynch representative for more details.
The part number you have selected is not a standard configuration. Please contact your Lynch representative for more details.
